LSF User's Quick Reference

Common Options

All commands take the following options. They will not be shown unless they differ for a specific command:

-h Print command usage to standard error and exit.
-V Print LSF version to standard error and exit.

LSF Base System Information

`lsid`

Display the LSF release version, the name of the local load sharing cluster, and the name of its master LIM host.

`lsclusters`

Display general configuration information about LSF clusters.

lsclusters [-l] [cluster...]

-l: Display information in a (long) multi-line format.
cluster...: Display information about the named cluster(s). Default: all clusters.

`lsinfo`

Display information about the LSF configuration, including available resources, host types and host models.

lsinfo [-l] [-r] [-m] [-t] [resource...]

-l: Display resource information in a (long) multi-line format.
-r: Display information about configured resources.
-m: Display information about configured host models.
-t: Display information about configured host types.
resource...: Display information about the named resource(s). Default: all resources.

`lshosts`

Display information about LSF host configuration, including host type, host model, CPU normalization factor, number of CPUs, maximum memory, and available resources.

lshosts [-l] [-R res_req] [host...|cluster...]

-l: Display information in a (long) multi-line format.
-R res_req: Display information about the hosts that meet the specified resource requirements. Default: display information for all hosts.
host...|cluster...: Display configuration information for the named host(s) or cluster(s). Default: display information for all hosts.

LSF Batch System Information

`bhosts`

Display information about the server hosts in the LSF Batch system.

bhosts [-l|-w] [-R res_req] [host...|cluster]

-l: Display information in a (long) multi-line format.
-w: Display fields in a (long) multi-line format without truncation.
-R res_req: Display information about the hosts that meet the specified resource requirements. Default: display information for all hosts in the local cluster.
host...|cluster: Display information on the named host(s) or cluster. Default: display information for all hosts in the local cluster.

`bhpart`

Display information about host partitions in the LSF Batch system.

bhpart [host_partition...]

host_partition...: Display information about the named host partition(s). Default: all.

`bparams`

Display information about the configurable LSF Batch system parameters. By default only display the most 'interesting' parameters.

bparams [-l]

-l: Display all the parameters along with brief descriptions and their corresponding names.

`bqueues`

Display information about batch queues in the LSF Batch system.

bqueues [-l|-w] [-m host|cluster] [-u user] [queue...]

-l: Display information in a (long) multi-line format.
-w: Display fields in a (long) multi-line format without truncation.
-m host|cluster: Display queues from which jobs may be dispatched to the named host or host group. Default: all hosts. Otherwise, display the queues in the named remote cluster.
-u user: Display the queues to which the named user or user group may submit batch jobs. Default: all users.
queue...: Display information about the named queue(s).

`busers`

Display information about LSF Batch users and user groups.

busers [user...|all]

user...|all: Display information about the named user(s) or user group(s) or about all users and user groups. Default: display information about the invoker.

`bugroup` and `bmgroup`

Display LSF Batch user or host group membership. If a group member is a group itself (subgroup), then a slash '/' is appended to its name.

bugroup [-r] [group...]
bmgroup [-r] [group...]

-r: Expand the group membership recursively.
group...: Display the membership of the named group(s). Default: display the members of all groups.

Placement Tools

`lsplace`

Query LIM daemon for a placement decision. This command is normally used in an argument to select hosts for other commands.

lsplace [-L] [-R res_req] [-n needed] [-w wanted] [host...]

-L: Attempt to place tasks on as few hosts as possible.
-R res_req: Only the hosts that meet the specified resource requirements are considered. Those with lowest load are selected. Default: select for CPU and memory intensive tasks, needing the same type of hosts as the local host.
-n needed: The number of CPUs that are minimally required. Default: 1.
-w wanted: Maximum number of CPUs wanted. Default: 1.; 0 Normal.; 1 Not enough hosts available.; -10 Failure detected in the LSF system.; -1 Other errors.

`lsrtasks` and `lsltasks`

Display or update the user's remote or local task lists. These task lists are maintained by LSF on a per user basis to store the resource requirements of tasks. Default: display the task list in multi-column format.

lsrtasks [+|- task[/res_req]...]
lsltasks [+|- task...]

+ task[/resreq]...: Add the task(s) to the task list, along with any optional resource requirements.
- task...: Remove the task(s) from the task list.

Interactive Remote Execution

`lsrun`

Submit a task to the LSF system for execution, possibly on a remote host.

lsrun [-S] [-P] [-l] [-v] [-m host...|cluster...] [-R res_req]
task [arg...]

-S: Create a pseudo-terminal with shell mode support when starting a remote task. Shell mode support is required for applications which redefine the CTRL-C and CTRL-Z keys.
-P: Create a pseudo-terminal when starting a remote task.
-l: Always execute the task locally if remote execution fails. Default: execute locally only if the local host also satisfies the resource requirements.
-v: Verbose mode. The name of the selected host is displayed.
-m host...|cluster...: Specify the candidate host(s) or cluster(s) for executing the task. If none of the candidate hosts satisfy the resource requirements, the task will not run. If only one host is specified, this option overrides the -R option and the task will be executed on that host.
-R res_req: Execute the task on a host that meets the resource requirements. If -R and -m are not specified, the resource requirements from the remote task list are used. Default: type==local unless a model or boolean resource is specified, in which case type==any order[r1m:pg].

`lsgrun`

Execute a task on the specified group of hosts.

lsgrun [-i] [-S] [-P] [-p] [-v] -f file | -m host...| -n needed
[-R res_req] [task [arg... ]]

-i: Interactive operation mode. The user is asked if task will be executed on all hosts.
-S: Create a pseudo-terminal with shell mode support when starting a remote task. Shell mode support is required for applications which redefine the CTRL-C and CTRL-Z keys.
-P: Create a pseudo-terminal when starting a remote task.
-p: Parallel run mode. If specified, the task is executed on all hosts simultaneously without pseudo-terminal support.
-v: Verbose mode. The name of the selected host is displayed.
-f file: Specify a file that contains a list of host names. This option is exclusive of options -m, -n, and -R.
-m host...: Specify the candidate host(s) to execute task. This option is exclusive of options -f, -n, and -R.
-n needed: Specify the number of processors to run task. A host may be used to start several tasks if it is a multiprocessor. This option can be used with option -R, and is exclusive of options -f and -m.
-R res_req: Execute the task on a host that meets the specified resource requirements. This option can be used with option -n. Default: type==local unless a model or boolean resource is specified, in which case type==any order[r15s:pg].
task[arg...]: The name of the task to be executed. If it is not specified, then the user is prompted to enter a command terminated by CTRL-D or EOF.

`lstcsh`

A load sharing version of tcsh (an enhanced version of the C shell). lstcsh accepts all the options used by tcsh, plus the additional -L option.

lstcsh [-bcdefimnstvVxXL] [arg...]

-L Execute an lstcsh script with load sharing enabled.

`lsmake`

A modified version of GNU make which executes make tasks in parallel on LSF hosts. lsmake accepts all the options used by GNU make (makeoptions). It also has additional options to support its LSF features.

lsmake [-m host... | [[-R res_req] [-j N]]] [-c N] [-F res_req]
[-P period] [-M] [-V] [-E] [-v] [makeoptions] [target...]

-m host...: Specify the candidate host(s) to execute task. This option cannot be used if -j and/or -R is specified.
-R res_req: Use hosts satisfying the specified resource requirements. Used along with the -j option. Default: use hosts that are the same type and are lightly loaded in CPU and memory.
-j N: Select at most N CPU slots. A CPU slot corresponds to a host, with multiprocessors having several CPU slots. This option cannot be used if -m is specified.
-c N: Start N tasks concurrently in each CPU slot. Default: only one task is started in each CPU slot.
-F res_req: File server saturation threshold requirement. If the file server becomes overloaded, the parallelism is gradually reduced until the load is within the threshold. Default: do not consider file server load.
-P period: CPU slot reselection period in minutes. This ensures that lightly loaded hosts are used. Default: do not reselect slots.
-M: Process sub-makes in parallel. Default: process submakes sequentially.
-V: Turn on verbose remote execution mode.
-E: Set environment variables for each task executed remotely. Default: when lsmake first starts up, set the environment variables once on the remote hosts.
-v: Print LSF version and the version number of GNU make to standard error and exit.

`lslogin`

Select a lightly loaded host that has few users and remotely log in, using the rlogin command. lslogin accepts all the options used by rlogin, including the host option. It has additional options to support its LSF features

lslogin [-v] [-R res_req] [rlogin_options]

-v: Display the name of the selected host.
-R res_req: Select a host satisfying the specified resource requirements. Default: type==any order[ls:r1m].

`ch`

Change to a host with the same execution environment on which subsequent commands will be executed.

ch [-t] [-S] [hostname]

-t: Timing option. Display amount of time each subsequent command takes to execute.
-S: Start the remote tasks with shell mode support. Shell mode support is required for applications which redefine the CTRL-C and CTRL-Z keys. The default is not to enable shell mode support.
hostname: Change host to hostname. Default: local host.; cd [dir]; ch [hostname]; post [command [arg...]]; contact taskID; exit

Cluster Load Monitoring

`lsload`

Display load information on hosts, in order of increasing load.

lsload [-N | -E] [-l] [-R res_req] [-I index] [-n number]
[host...|cluster...]

-N: Return normalized CPU run queue length load indices. CPU run queue values are normalized using the number of CPUs and the CPU factors of the hosts. Default: return raw load indices. Options -N and -E are mutually exclusive.
-E: Return effective CPU run queue length load indices. CPU run queue values are normalized using the number of CPUs of the hosts. Default: return raw load indices. Options -N and -E are mutually exclusive.
-l: Display information in a long format.
-R res_req: Display information about the hosts that meet the specified resource requirements. Default: type==any order[r1m:pg].
-I index: Display only the specified load indices. List of load index names are separated by ':' (r1m:pg:ut).
-n number: Display up to the specified number of hosts that best satisfy the resource requirements. Default: display all hosts that satisfy the resource requirements.
host...|cluster...: Display information for the named host(s) or cluster(s). Default: display information for all hosts. If -R is specified, display all hosts that satisfy the resource requirements.

`lsmon`

Full screen LSF monitoring utility displaying dynamic load information of hosts. lsmon supports all the lsload options, plus the additional -i and -L options. It also has run-time options.

lsmon [-N | -E] [-n number] [-R res_req] [-I index] [-i interval]
[-L logfile] [host...|cluster...]

-i interval: Update interval of load information. Default: 10 seconds.
-L logfile: Save the load information into the specified file.; ^L Refresh the screen.; i Input a new update interval.; n Input a new number of hosts to display.; N Switch between displaying normalized and raw CPU load indices.; E Switch between displaying effective and raw CPU load indices.; R Input new resource requirements.; q Quit lsmon.

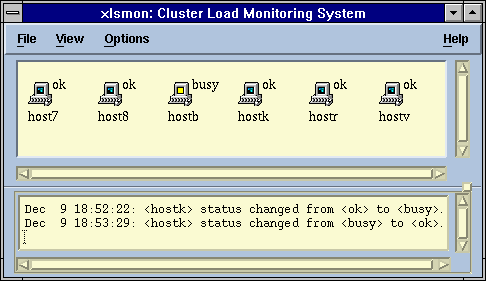

`xlsmon`

A Motif graphical user interface for monitoring the load on the hosts in an LSF cluster.

Batch Job Submission

`bsub`

Submit a job for execution in the LSF Batch system. If no command is given, bsub reads job commands from the standard input. If the standard input is a controlling terminal, bsub prompts for commands.

bsub [-x] [-r] [-N] [-B] [-I | -Ip | -Is] [-q queue...]
[-m host[+[level]]...] [-n min[,max]] [-R res_req] [-J jobname] [-b begin]
[-t terminate] [-i infile] [-o outfile] [-e errfile] [-u user]
[[-f "[lfile op [rfile]]"] ...] [-c cpu[/spec]] [-W run[/spec]] [-F file]
[-M mem] [-D data] [-S stack] [-C core] [-k "dir [period]"] [-w depend]
[-E "pre_exec [arg...]"] [-L shell] [-P project] [command [arg...]]

-x: Exclusive execution mode.
-r: Specifies that the job can be rerun.
-N: Notify the submitter by mail when the job finishes. If -o option is not given, the standard output from the job is included in the message.
-B: Notify the submitter by mail when the job is dispatched and begins execution.
-I: Submit an interactive job. bsub blocks until the job is terminated. See -i, -o, and -e options. Default: job interacts with user's terminal.
-Ip: Submit an interactive job and create a pseudo-terminal when the job starts.
-Is: Submit an interactive job and create a pseudo-terminal with shell mode support when the job starts. Shell mode support is required for applications which redefine the CTRL-C and CTRL-Z keys.
-q queue...: Submit the job to the specified queue(s). Default: the system default queue.
-m host[+[level]] ...: Limit candidate hosts for executing this job to the specified host(s). '+' is used to specify preference. level is a positive number specifying the preference level of a host.
-n min[,max]: The minimum and maximum number of processors requested to run a (parallel) job. Default: one processor.
-R res_req: Execute the task on a host that meets the resource requirements. Default: type==local unless a model or boolean resource is specified, in which case type==any order[r1m:pg].
-J jobname: Assign the specified character string to the job.
-b begin: Dispatch the job for execution on or after the specified time.
-t terminate: The job termination deadline. Default: allow the job to run as long as its resource limits permit.
-i infile: The job gets its standard input from the specified file. Default: /dev/null (UNIX).
-o outfile: Write the standard output of the job to the specified file. Default: sent by mail to the user.
-e errfile: Write the standard error output of the job to the specified file.
-u user: Send mail to a specified email address. Default: send mail to the submitting user according to the format specified in lsf.conf file.
-f "[lfile op [rfile]]"...: Copy a file between the local (submission) host and the remote (execution) host. op is one of '>', '<', '<<', or '><' (or '<>'). op is illegal without at least one of lfile or rfile.
-c cpu[/spec]: Set the total CPU time limit for this job. Default: no limit. The optional spec defines the appropriate host CPU scaling factor.
-W run[/spec]: Set the wall-clock run time limit of this job. Default: no limit. spec is the same as in the -c option.
-F file: Set a per-process (soft) file size limit for each of process belonging to this job. Default: no soft limit.
-M mem: Set the total process resident set size limit in Kbytes for the whole job. Default: no limit.
-D data: Set a per-process (soft) data segment size limit for each of the processes that belong to this job. Default: no soft limit.
-S stack: Set a per-process (soft) stack segment size limit for each of the processes that belong to this job. Default: no soft limit.
-C core: Set a per-process (soft) core file size limit for all the processes that belong to this job. Default: no soft limit.
-k dir [period]: This job can be checkpointed. The checkpoint directory is a relative or absolute path name, and is used for restarting the job (see brestart). Multiple jobs can checkpoint into the same directory. Optionally, a checkpoint period in minutes may be specified.
-w depend: Only when the dependency condition is satisfied (TRUE), will the job be considered for dispatch. The expression is composed of job or system conditions using '&&', '||' and '!' logic operators. Conditions are job status, calendar, file event, or user event.; Job status conditions:; Calendar conditions (calendars are only available with LSF JobScheduler):; File event conditions:; User event conditions:
-E "pre_exec [ arg... ]": Execute the pre-execution command on the host to which the job is dispatched to run (or on the first host selected for a parallel job) before actually running the job. If the pre-execution command exits with 0, start the primary job; otherwise the job remains pending.
-L shell: Specifies the name of the login shell used to initialize the execution environment.
-P project: Specifies the name of the project that this job will be charged to.

Batch Job Tracking

`bjobs`

Display the status and other information about jobs in the LSF Batch system.

bjobs [-l | -w] [-a] [-d] [-p] [-s] [-r] [-N spec] [-q queue]
[-m host|cluster] [-u user|all] [-J jobname] [-P project] [jobId...]

-l: Display information in a (long) multi-line format.
-w: Display fields in a (long) multi-line format without truncation.
-a: Display information about all jobs, including unfinished jobs (pending, running or suspended) and recently finished jobs.
-d: Display only recently finished jobs.
-p: Display only pending jobs, with the reasons they were not dispatched during the last dispatch turn.
-s: Display only suspended jobs, showing the reason for suspension.
-r: Display only running jobs.
-N spec: Display CPU time consumed by the job. The appropriate CPU scaling factor for the specified host, or defined host model, is used to normalize the actual CPU time consumed by the job.
-q queue: Display only jobs in the named queue.
-m hostname: Display only jobs dispatched to the named host or host group.
-u user|all: Display jobs submitted by the named user or by all users. Default: display the jobs submitted by the user who invoked this command.
-J jobname: Display all jobs with the s[ecified name.
-P project: Display only jobs belonging to the named project. Default: display jobs belonging to all projects.
jobId...: Display the job(s) with the specified job ID. The value 0 is ignored.

`bhist`

Display the history of one or more jobs in the LSF Batch system.

bhist [-b] [-l] [-w] [-a] [-d] [-p] [-s] [-r] [-f logfile] [-N spec]
[-C time0,time1] [-S time0,time1] [-D time0,time1] [-q queue] [-m host]
[-u user|all] [-J job] [-n number] [-P project] [jobId...]

-b: Display the job history in a brief format. Default: display summary format.
-l: Display the job history in a (long) multi-line format, giving detailed information about each job. Default: display summary format.
-w: Display the job history in a (wide) multi-line format without truncation. Default: display summary format.
-a: Display all, both finished and unfinished, jobs. Default: finished jobs are not displayed.
-d: Display only the finished jobs.
-p: Display only the pending jobs.
-s: Display only the suspended jobs. If option -l or -b is also specified, show the reason why each job was suspended.
-r: Display only the running jobs.
-f logfile: Specify the file name of the event log file. Either an absolute or a relative path name may be specified. Default: use the system event log file lsb.events.
-N spec: Display CPU time consumed by the job. The appropriate CPU scaling factor for the specified host, or defined host model, is used to normalize the actual CPU time consumed by the job.
-C time0,time1: Display only those jobs whose completion or exit times were between time0 and time1. Default: display all jobs that have completed or exited.
-S time0,time1: Display only those jobs whose submission times were between time0 and time1. Default: display all jobs that have been submitted.
-D time0,time1: Display only those jobs whose dispatch times were between time0 and time1. Default: display all jobs that have been dispatched.
-q queue: Display jobs submitted to the specified queue only. Default: display all queues.
-m host: Display jobs dispatched to the specified host only. Default: display all hosts.
-u user|all: Display jobs submitted by the named user or by all users. Default: display the jobs submitted by the user who invoked this command.
-J jobname: Display all jobs with the s[ecified name.
-P project: Display only jobs belonging to the named project. Default: display jobs belonging to all projects.
jobId...: Display the specified job(s).

`bpeek`

Display the standard output and standard error that has been produced by an unfinished batch job in the LSF Batch system.

bpeek [-f] [-q queue | -m host | -J jobname | jobId]

-f: Display the output of the job using the command "tail -f". Default: use the command "cat".
-q queue: Display the output of the most recently submitted job in the specified queue.
-m host: Display the output of the most recently submitted job that has been dispatched to the specified host.
-J jobname: Display the output of the most recently submitted job that has the given name.
jobId: Display the output of the specified job. Default: display the output of the most recently submitted job that satisfies options -q, -m, or -J.

Batch Job Manipulation

`bmodify`

Modify the options of a previously submitted job. bmodify uses a subset of the bsub options. To reset an option to its default value, use the option string followed by 'n'.

bmodify [-x | -xn] [-r | -rn] [-N | -Nn] [-B | -Bn] [-q queue... | -qn]
[-m host... | -mn] [-n number | -nn] [-R res_req | -Rn] [-J jobname | -Jn]
[-b begin | -bn] [-t terminate | -tn] [-i infile | -in] [-o outfile | -on]
[-e errfile | -en] [[-f "[lfile] op [rfile]"] ... | -fn]
[-c cpu[/host | -cn]] [-W run [/host ] | -Wn] [-F file | -Fn]
[-M mem | -Mn] [-D data | -Dn] [-S stack | -Sn] [-C core | -Cn]
[-k dir [period] | -kn] [-s sigval | -sn] [-w depend | -wn]
[-P project | -Pn] [-E "pre_exec [arg...]" | -En] [-L "shell" | -Ln]
[-O] jobId

-O: Change the option values temporarily for the next run of the job. This option only affects calendar-driven jobs. See LSF JobScheduler Specific Commands.
jobId: Modify the options of the specified job.

`bstop` and `bresume`

Suspend or resume one or more unfinished batch jobs.

bstop [-q queue] [-m host] [-u user | all] [-J jobname] [jobId...]
bresume [-q queue] [-m host] [-u user | all] [-J jobname] [jobId...]

-q queue: Stop or resume the jobs in the specified queue.
-m host: Stop or resume the jobs dispatched to the specified host or host group. Ignored if a job ID other than 0 is specified.
-u user | all: Stop or resume the jobs submitted by the named user or by all users. Ignored if a job ID other than 0 is specified.
-J jobname: Stop or resume the named jobs. Ignored if a job ID other than 0 is specified.
jobId...: Stop or resume the specified jobs.

`bkill`

Send a signal to one or more unfinished batch jobs

bkill [-l] [-s value | name] [-q queue] [-m host] [-u user | all]
[-J jobname] [jobId...]

-l: Display the set of signal names supported. (This is a subset of those supported by /bin/kill and is platform dependent).
-s value | name: Send the signal specified by value or name to the specified jobs. Default: SIGKILL or 9.
-q queue: Send a signal to the jobs in the specified queue.
-m host: Send a signal to the jobs dispatched to the specified host or host group. Ignored if a job ID other than 0 is specified.
-u user | all: Send a signal to the jobs submitted by the named user or by all users. Ignored if a job ID other than 0 is specified.
-J jobname: Send a signal to the named jobs. Ignored if a job ID other than 0 is specified.
jobId...: Send a signal to the specified jobs.

`bchkpnt`

Checkpoint one or more unfinished (running or suspended) jobs. The job must have been submitted with bsub -k.

bchkpnt [-f] [-k] [-q queue] [-m host] [-u user | all] [-J jobname]
[-p period] [jobId...]

-f: Checkpoint a job even if non-checkpointable (operating system-specific) conditions exist.
-k: The job is checkpointed and killed atomically by the system.
-q queue: Checkpoint the jobs in the specified queue. Ignored if a job ID other than 0 is specified.
-m host: Checkpoint the jobs dispatched to the named by host or host group. Ignored if a job ID other than 0 is specified.
-u user | all: Checkpoint the jobs submitted by the named user or by all users. Ignored if a job ID other than 0 is specified.
-J jobname: Checkpoint the named jobs. Ignored if a job ID other than 0 is specified.
-p period: Checkpoint the job and change its checkpoint period in minutes. A period of 0 disables periodic checkpointing.
jobId...: Checkpoint the specified jobs.

`brestart`

Submit a job to be restarted from the checkpoint files in the specified directory. brestart uses a subset of the bsub options.

brestart [-f] [-x] [-N] [-B] [-q queue] [-m host...] [-b begin]
[-t terminate] [-c cpu[/spec]] [-W run[/spec]] [-F file] [-M mem] [-D data]
[-S stack] [-C core] [-w depend] [-E "pre_exec [arg...]"] dir [jobID]

-f: Force the job to be restarted even if non-restartable conditions exist. Non-restartable conditions are operating system-specific.
dir: The checkpoint directory specified with bsub -k.
jobID: The last jobID of the checkpointed job.

`bmig`

Migrate one or more unfinished (running or suspended) jobs to another host. The job must have been submitted with -r or -k options to bsub.

bmig [-f] [-m host...] [-u user | all] [-J jobname] [jobId...]

-f: Force the job to be migrated and restarted even if non-restartable conditions exist. Non-restartable conditions are operating system-specific.
-m host...: Restrict candidate jobs for migration to those from the named host(s).
-u user | all: Migrate the jobs submitted by the named user or by all users. Ignored if a job ID other than 0 is specified.
-J jobname: Migrate the named jobs. Ignored if a job ID other than 0 is specified.
jobId...: Migrate the specified jobs.

`btop` and `bbot`

Move a pending job to the top (beginning) or bottom (end) of its queue. This only effects the user's own jobs.

btop jobId [position]
bbot jobId [position]

jobId: Move the specified job.
position: A positive number that indicates the target position of the job relative to the beginning (for btop) or end (for bbot) of the queue.

`bswitch`

Switch one or more unfinished (running or suspended) jobs from one queue to another.

bswitch [-q queue] [-m host] [-u user | all] [-J jobname] destination
[jobId...]

-q queue: Switch jobs from the specified queue. Ignored if a job ID other than 0 is specified.
-m host: Switch jobs dispatched to the named by host or host group. Ignored if a job ID other than 0 is specified.
-u user | all: Switch jobs submitted by the named user or by all users. Ignored if a job ID other than 0 is specified.
-J jobname: Switch the named jobs. Ignored if a job ID other than 0 is specified.
destination: The destination queue to which jobs will be switched.
jobId...: Switch the specified jobs.

LSF Batch Graphical User Interface Applications

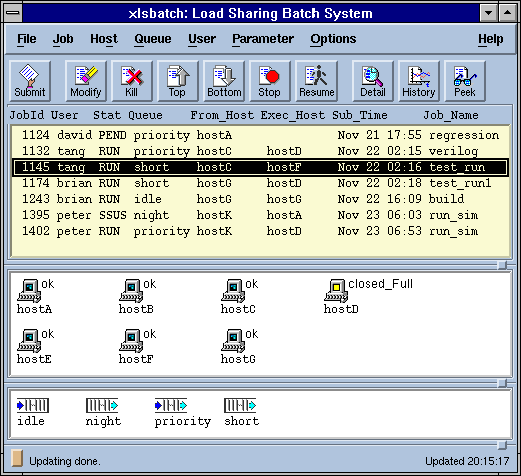

`xlsbatch`

A Motif based graphical user interface for monitoring jobs and other aspects of the LSF Batch system.

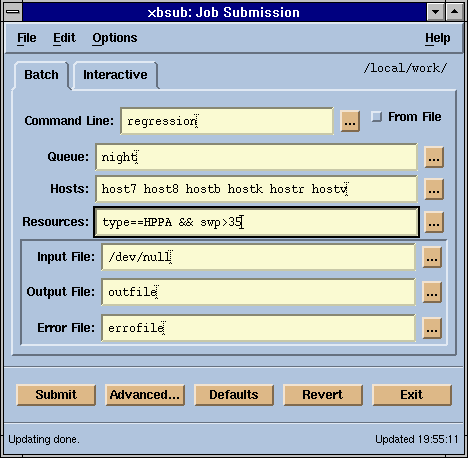

`xbsub`

A Motif based graphical user interface for submitting a job to the LSF Batch system.

LSF JobScheduler Specific Commands

LSF JobScheduler allows users to run calendar-driven jobs. LSF JobScheduler users can also make use of all LSF Batch capabilities.

`bcaladd`, `bcalmod`, and `bcaldel`

Create , modify, or delete a calendar in the LSF JobScheduler system (excluding system calendars).

bcaladd [-d description] -t expression... calendar
bcalmod [-d description] [-t expression...] calendar
bcaldel calendar...

-d description: A string description of the calendar. If the description contains spaces, it must be quoted.
-t expression...: A list of time expressions separated by spaces. These indicate when the calendar will be active. The format of a time expression is "year:month:day:hour:min[%duration]". The time expression list must be quoted.
calendar: Name of the calendar.

`bcal`

Display information about the calendars in the LSF JobScheduler system.

bcal [-l] [-u user | all] [calendar...]

-l: Display detailed calendar information in a (long) multi-line format.
-u user | all: Display information about calendars owned by the named user (not applicable to system calendars) or by all users. Default: display information about calendars owned by the user who invoked this command and system calendars.
calendar...: Display information only about the named calendar(s). Default: display all calendars.

`bcalhist`

Display a history of events associated with calendars (excluding system calendars).

bcalhist [-t time0,time1] [-f file] calendar...

-t time0,time1: Display only those calendar modification events between time0 and time1.
-f file: Specify the file name of the event log file. Either an absolute or a relative path name may be specified. The default is to use the event log file currently used by the LSF Batch system: $LSB_SHAREDIR/clustername/logdir/lsb.events. Search the named file for history information. The default is to search the event log file currently used by the LSF Batch system.
calendar...: Display information about the named calendar(s).

`bdel`

Delete one or more unfinished batch jobs. This command must be used to remove a calendar-driven job from the LSF JobScheduler system. bkill kills the current run of the job, while bdel removes the job completely. Running bdel on a job that is not calendar-driven is equivalent to bkill.

bdel [-n number] [-q queue] [-m host] [-u user | all] [-J jobname]
[jobId...]

-n number: Delete the jobs after the specified number of runs have completed.
-q queue: Delete the jobs in the specified queue.
-m host: Delete the jobs dispatched to the specified host or host group. Ignored if a job ID other than 0 is specified.
-u user | all: Delete the jobs submitted by the named user or by all users. Ignored if a job ID other than 0 is specified.
-J jobname: Delete the named jobs. Ignored if a job ID other than 0 is specified.
jobId...: Delete the specified jobs.

`bevents`

Display information about events in the LSF JobScheduler system.

bevents [-l] [-u user | all] [event...]

-l

Display detailed information for each event in a (long) multi-line format.

-u user | all

Print information about events used by the jobs submitted by the named user or by all users.

event...

Display information about the specified event(s).

`xbcal`

A Motif based graphical user interface for creating, modifying, and deleting calendars in the LSF JobScheduler system.

Resources

There are two types of resources for a task: dynamic resources and static resources. Use lsinfo to see a complete list of dynamic and static resources available on your system.

Dynamic Resources

LSF defines several dynamic resources. Each dynamic resource corresponds to a Load Index. Load indices are used to determine how busy a host is (see lsload).

Static Resources

Any unchanging characteristic or attribute of a host that can be useful in selecting hosts for remote tasks may be considered a static resource. Static resource requirements of a task limit the eligible machine set for the task, or the set of machines that can execute the task.

Some static boolean resources are site-dependent, defined by the LSF administrator in the LSF configuration files.

Use lshosts to see what static resources are available on each host.

Specifying Resource Requirements

A resource requirement string describes the resources a job needs. LSF uses resource requirements to select hosts for remote execution and job execution.

The syntax of a resource requirement string is:

select[selectstr] order[orderstr] rusage[usagestr]

Note
These are real brackets, not syntactic notation.
The keyword select and its associated brackets can be omitted.

The selectstr specifies the characteristics a host must have to match the resource requirement. It is a logical expression built from resource names combined with logical and arithmetic operators using standard C language syntax and precedence.

Boolean resources have a value of 1 if they are defined for a host, and 0 otherwise. Non-zero arithmetic values are treated as logical TRUE, and zero as logical FALSE.

The special values any and local (meaning the same value as the local host) may be used with the resources type and model.

Note
The values of r15s, r1m, and r15m used for selection are the effective load indices returned by lsload -E.

For lshosts, lsload, lsmon, and lslogin the default is type==any. For lsplace, lsrun, lsgrun, lsmake, and bsub the default is type==local unless a model or boolean resource is specified, in which case it is type==any.

The orderstr allows the selected hosts to be sorted according to the values of resources. The syntax of orderstr is:

res[:res]...

Each res must be a dynamic load index (see lsload) or an external load index defined by the LSF administrator.

Note
The values of r15s, r1m, and r15m used for sorting are the normalized load indices returned by lsload -N.

The orderstr is used for host sorting and selection. The ordering begins with the right most index in the string and proceeds from right to left.The hosts are sorted into order based on each load index, and if more hosts are available than were requested the LIM drops the least desirable hosts according to that index. The remaining hosts are then sorted by the next index.

After the hosts are sorted by the left most index in orderstr, the final phase of sorting orders the hosts according to their status, with hosts that are currently not available for load sharing (that is, not in the ok state) listed at the end.

The default is r1m:pg (except for lslogin which is ls:r1m).

The usagestr specifies the expected resource usage of the task. This is used to specify resource reservation the load and for mapping tasks onto hosts during a placement decision. The syntax of usagestr is:

res=value[:res=value]...[:res=value][:duration=value][:decay=value]

Here res can be any load index. The value parameter is the initial reserved amount.

The default is r1m:r15s:mem:ut.

Documentation

Documentation for LSF consists of this reference and the LSF Administrator's Quick Reference, the LSF Installation Quick Reference, the LSF User's Guide, the LSF Administrator's Guide, the LSF Programmer's Guide, the LSF JobScheduler User's Guide, the LSF man pages, and the xlsbatch, xlsmon, xbsub, and xbcal on-line help.

doc@platform.com

LSF User's Quick Reference

Common Options

LSF Base System Information

lsid

lsclusters

lsinfo

lshosts

LSF Batch System Information

bhosts

bhpart

bparams

bqueues

busers

bugroup and bmgroup

Placement Tools

lsplace

lsrtasks and lsltasks

Interactive Remote Execution

lsrun

lsgrun

lstcsh

lsmake

lslogin

ch

Cluster Load Monitoring

lsload

lsmon

xlsmon
